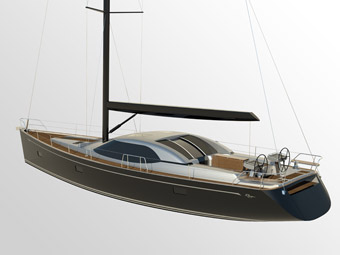

buizen 60 pilot house yachts

Xhtml CSS Menu Css3Menu.com





Standard Specifications as at July 2012 (Subject to amendment).


  • LOA 18.38m (60'3")
  • Beam 5.230m
  • Draft 2.8m
  • Displacement 27,250kg
  • Fuel 1,800 litres
  • Water 900 litres
  • Main engine 200Hp Yanmar
  • Generator 9.5 Kva Onan/Mase
  • Sail Area Main 101m2
  • Jib 63.5m2

Design and Built to International Code ISO 12215 to meet CE European Standards.

Summary of Standard Services and Inclusions at a glance;

  • All Hydraulic push button sailing, raising, trimming and furling.
  • Full laid teak decks, cockpit, sides and foredeck.
  • Fully reverse cycle Air Conditioning to all cabins.
  • Fully Automatic 142 litre/hr Watermaker
  • Full suite of Raymarine Navigation instruments inc E Series Chart Plotters and Radar to internal and external helms.
  • Electric Throttle Controls on all Helm Stations.
  • Bose Audio Visual Systems.
  • CZone Touch screen for all electrical switching and monitoring.
  • Luxurious bespoke semi customized Buizen Interiors featuring premium joinery and finishes.

Detail of Standard Services and Inclusions

Hull Construction :

  • Vinylester resins with multi e-glass Biaxial and woven wovings glass reinforcement outer and inner skins, cored closed Divinycell core composite sandwich. Hull thickness 34.4mm.

Deck Construction :

  • Outer skin: Gelcoat tie layered with polyester resin and multi CSM and Biaxial e-glass reinforcement. Hand laid.
  • Core: Glass sandwiched closed Divinycell foam core and structural ply solid reinforcement under all fittings
  • Inner skin: polyester/vinylester resin with multi Biaxial e-glass reinforcement. Hand laid.

Hull and Deck Finish

  • Awl Grip 2000 Epoxy paint system, Oyster White.


  • 7.0 tonne lead bulb, cast iron fin thru bolted into keel box of hull, epoxied and faired.


  • GRP encased around a stainless steel frame welded to 3 & 1/2 " solid S/S rudder shaft and stock.

Propellor and shaft

  • Folding propeller on 38mm stainless shaft with bronze skeg.

Internal Joinery Timber:

  • New Guinea Rosewood with Walnut skirtings, architraves and trims.

Deck Equipment :

  • Custom Stainless Steel stemhead with double bow roller, one fitted with a 80lb plough anchor and 80 metres of 13mm chain.
  • Chain deflector
  • Heavy duty Muir electric anchor winch and capstan.
  • Large self draining anchor locker divided into two compartments
  • Stainless steel bow pulpit.
  • Stainless steel stern pushpit with seat frames, teak seats and teak back rest.
  • Stainless steel handrails between pushpit and S/S "A" frame side gates with boarding steps.
  • Teak Cap Rail to Bulwark, 1 ¼" solid S/S Rubbing strip.
  • Stainless Steel stanchions with double life lines.
  • 2 Fwd, 2 Midship and 2 aft fairleads and mooring cleats
  • 5 Flush deck hatches recessed into deck.
  • Opening portholes to cockpit from Aft Cabins.
  • 8 Fixed portholes to Hull
  • Deck drains
  • 1 Saltwater deck wash (accessed from anchor locker)
  • 2 @ Fuel filler (one each side)
  • 2 @ Water filler (one each side)
  • 1 @ Blackwater deck pump out.
  • Teak laid cockpit, side decks and foredeck.
  • Non slip gelcoat finish to Cabin roof.


  • Moulded fiberglass self draining deck.
  • 6 Storage lockers
  • Hatch to Transom Garage below.
  • S/S Pushpit teak bench seats to transom
  • Teak laid cockpit floor from saloon step to transom, teak laid seats to cockpit and upper platform
  • Teal laid decks
  • Twin Helm Wheels on Steering Pedestal with GRP Command instrument consoles mounted on GRP pedestals (see below for description)
  • Sliding glazed door to saloon and glazed fixed lights
  • Cockpit table, Teak grate style leaves with grab s/s rails and drink holders.

Navigation Instrumentation to Cockpit Helm Consoles x 2

  • GRP Consoles mounted on GRP steering pedestals behind helm wheels
  • Raymarine E90 Touch Screen Chart Plotter and Radar x 1
  • Raymarine ST70 Auto Pilot Control Head with Gyro
  • Raymarine SPX 30 Pilot Core pack
  • Raymarine ST 70 Jumbo Displays Multi Function x 2 located on Cabin wings
  • Raymarine ST 70 Jumbo Display key pad controller
  • Stainless steel engine electric throttle controls
  • Bow Thruster controls x 2
  • Electric/hydraulic main sail furling controls
  • Main and secondary winch hydraulic controls (2 speed)
  • Electric Mainsail Furling Control
  • Anchor control and chain counter
  • Engine Start Stop control
  • Foot Furling Switch engage switch
  • Garage Door opening and closing switches
  • Mainsheet switch control (in/out)


  • Transom garage storage area moulded in stern with sealed bulkhead separation from rest of the yacht.
  • Transom Garage door hydraulically operated with teak laid deck as swim platform when down
  • Stainless steel swim ladder
  • Freshwater transom shower
  • Stainless steel bump rail to aft edge of door.
  • Electronic dinghy winch.

Mast & Rigging :

  • Keel stepped alloy mast (painted black in Awlcrip 2000)
  • Three spreader rig
  • Two deck lights to u/s of lower spreader
  • Intermediate, lower and main deck shrouds
  • Dyform type stainless steel standing rigging with swaged terminals
  • 1 @ Backstay (hydraulically adjusted from panel in cockpit)
  • 1 @ Forestay
  • Leisure Furl alloy boom with hydraulic furling system (incorporating halogen light to u/s)
  • (Painted Black in Awlgrip 2000)
  • Mainsheet controlled by hydraulic ram inside boom to let in/out.
  • Hydraulic Boom Vang operated from panel in cockpit.
  • Hydraulic Backstay adjustment operated from panel in cockpit.
  • Harken Electric Headsail furling system (operated from console in cockpit)
  • Self tacking headsail moulded into deck
  • 2 x Harken 80 Hydraulic Primary winches in cockpit (2 speed)
  • Additional halyards for spinnaker, staysail etc
  • Genoa Tracks on side decks.
  • Mainsail single point attachment in cockpit floor.
  • All sheets, halyards, deck blocks, stand up blocks, shackles, cars and clutches for all sheets
  • All Halyards and sheets concealed below decks between fwd deck and combings.
  • Flag halyards
  • Windex
  • Mainsail Radial cut Dacron (101 sqm) and Self Tacking Genoa Radial cut Dacron (63.5 sqm), by Hood Sails Australia


  • BEP Digital Switching System CZone with Sub Boards located throughout boat
  • 8" Touch Screen Control Panel
  • 1 x 5000w Mastervolt Inverter and battery chargers 60amp.
  • Dedicated 12 volt battery for engine/generator start
  • Dedicated 12 volt battery for 12 volt equipment
  • Dedicated 24 volt Batteries for Bow thruster (Eight @ 6 volt house service batteries 400 amp @ 24 volt)
  • One 24 volt 120 amp engine driven alternator for main house battery 24 volt charging
  • One 12 volt 80 amp engine driven alternator for 12 volt main and generator battery charging
  • One 12 volt 20 amp generator driven alternator
  • One 24 to 12 volt dc to dc convertor
  • 240 volt stainless steel shore power inlet
  • 8 x 240 volt outlets
  • 24 volt LED strip concealed lighting to interior cabins (interior)
  • 24 Volt LED strip lighting concealed in galley floor and underbench
  • 24 volt halogen reading lights to bunks
  • LED Navigation lights
  • LED Anchor light
  • LED Combination steaming/deck light
  • Cockpit light
  • Light to underside of boom to cockpit
  • 12 and 24 volt panel with breakers
  • 240 volt panel with breakers
  • Battery isolation switches
  • 2 x Automatic Bilge pumps
  • 1 x Manual Bilge Pump
  • 1 x Deck wash pump (salt)
  • 5 x Engine room, tunnel and Garage lights
  • 3 x Shower/bathroom/galley sump pump
  • 1 x Domestic Fresh water pump

Engine Room :

  • Acoustic soundproofing
  • 200hp Yanmar turbo diesel
  • 9.5 kva Onan/Mase Generator
  • Racor glass bowl fuel filters
  • Stainless steel fuel and balance lines
  • Engine room lights
  • 1800 litre dual fuel tanks
  • 900 litre dual water tanks
  • Fuel and water balancing, drain and feed lines
  • 40 litre hot water unit
  • Domestic freshwater pump
  • Saltwater deck wash pump
  • Ball valves on all skin fitting inlets
  • 38mm stainless steel propeller shaft with PPS dripless seal
  • 2 x Electric bilge pump (fwd & engine compartments)
  • 1 x Manual bilge pump
  • 240 volt and 24 volt Refridgeration compressors
  • Holding tank (black water 250litre) with macerator pump
  • Holding Tank (Grey Water 250 litre) with macerator pump
  • Winch and Furling Hydraulic power pack, pump, valve banks.
  • Electric Throttle Control Processor
  • Air Conditioning Cooling Water Pumps
  • 240 volt Fresh Water Deck wash pump
  • Fully automatic Watermaker 142 litre/hr
  • Air conditioning compressor/air handling units, 2 x 12000btu, 2 x 16000btu

Main Engine :

  • 200hp Yanmar turbo diesel with marine gears
  • Freshwater cooling
  • Alternator 120 amp 24 volt and 80 amp 12 volt
  • Racor Fuel filter

Generator :

  • 9.5kva Onan/Mase generator
  • Racor fuel filter

Bow Thruster :

  • Tunnel Thruster (8kw)

Galley :

  • Corian galley top with corian fiddle (Both Sides)
  • Glass Splashbacks to all Galley Tops
  • Overhead cupboards (Rosewood)
  • Pantry cupboards and drawers (Rosewood)
  • Teak laid floor, Walnut kick boards/skirting
  • Rosewood faced bulkheads
  • Teak laid floor hatch in two sections for under floor storage
  • Gimbaled electric Microwave/Convection oven and ceramic cook top
  • Sinks Port and Starboard (Franki)
  • Brodware Tapsets
  • Hot and cold pressurised water
  • 240 volt and 24 volt driven eutectic refrigerator
  • 240 volt and 24 volt driven eutectic freezer
  • Under bench lights (Halogen/LED)
  • Overhead lights (Halogen/LED)
  • 2 x 240 volt double outlet

Main Saloon:

  • Laminated 14mm and 12mm tinted laminated safety glass windows
  • Soft leatherette headliner panels with dual Rosewood grab rails to ceiling
  • "L" shape main lounge settee leather upholstered.
  • Two seater leather upholstered lounge Stbd. side
  • Walnut dinette table, folds to coffee table
  • Leather upholstered and stainless steel handrails to galley
  • Rosewood steps down to galley
  • Teak laid solid floor
  • Engine access hatches.
  • 2 x overhead flush deck hatches
  • LED Lighting flush fittings
  • 2 x 240 volt power outlet
  • Verosol/Ocean Air blinds
  • Bose system DVD,CD,AM/FM Audio Entertainment
  • 32" TV Plasma/LCD Screen on Hydraulic raise (concealed)

Helm Station in Main saloon :

  • Rosewood console and leather upholstered dashboard.
  • Engine controls, warning lights, audible alarm, oil pressure, water temperature gauge, tachometer, voltmeters etc.
  • Stainless steel engine electric throttle control with Cockpit/Inside Helm selector.
  • Raymarine Joystick control for hydraulic power steering.
  • BEP Digital Switching CZone Electronic System 8" Touch Screen Control inc all DC and AC Monitoring.
  • Tank level monitoring for Fuel, Water and Black Water Storage tanks, and pump out control.
  • VHF radio Icom.

Internal Helm Navigation Instrumentation

  • Raymarine E120 Touch screen Chart Plotter and Radar
  • Raymarine ST70 Auto Pilot Control Head with Gyro
  • Raymarine ST 70 Multi Function inc Wind, Depth, Speed, Log etc
  • Raymarine SPX Auto Pilot System (Gyro)

Port Aft Cabin & Starboard Aft Cabin:

  • Ensuite Toilet and Shower
  • Soft leatherette headliner
  • Rosewood bulkheads and paneled bunk sides
  • Rosewood overhead lockers
  • Rosewood Double Drawer units
  • Rosewood Locker
  • Double bunk berth.
  • 150mm Mattress
  • Storage under bunks
  • 4 x Overhead light (Halogen/LED)
  • 1 x Reading light (Halogen)
  • Fixed porthole
  • Opening porthole/hatch x 2
  • Solid Teak laid floor
  • Rosewood faced cabin door

Port and Stbd. Aft Cabin Ensuites:

  • Shower Corian lined, toilet and vanity unit
  • Brodware Tapsets stainless steel
  • Electric Toilets are fresh water flush
  • Hot and cold pressurised water
  • Corian bench tops with corian fiddles
  • 2 x overhead lights (halogen/LED)
  • 1 x 240 volt outlet
  • Hand held shower (Brodware sets)
  • Vanity Mirror
  • Towel Hooks
  • Vanity Locker
  • Teak shower grates
  • Soap dispenser and toothbrush holders

Forward Stateroom :

  • Soft leatherette headliner
  • Rosewood "v" jointed boarding to cabin sides
  • Rosewood faced bulkheads
  • Queen berth
  • 200mm Mattress
  • Rosewood overhead cupboards and shelves
  • Rosewood hanging locker and shelf arrangements
  • Rosewood Large Drawers x 4
  • Storage under bunk
  • Large deck hatch
  • Overhead lights (Halogen/LED)
  • 2 x reading lights (Halogen)
  • 2 x fixed portholes
  • Solid Teak laid floor, Wenge skirting
  • Rosewood faced cabin door
  • 24 volt power outlet x 2

Forward Stateroom Ensuite:

  • Separate Shower Corian lined, toilet and vanity unit
  • 2 Shaving Cabinets
  • Fixed glass shower screen and door
  • Brodware Tapsets stainless steel
  • Electric Toilet is fresh water flush
  • Hot and cold pressurised water
  • Corian bench tops with corian fiddles.
  • 2 x overhead lights (halogen)
  • 1 x 240 volt outlet
  • Adjustable shower (Brodware)
  • Timber Louvres to Ensuite bulkhead.
  • Vanity Mirror
  • Towel rail
  • Towel Hooks
  • 1 x deck hatch
  • Vanity locker
  • Teak shower grates
  • Teak
  • laid floor
  • Soap dispenser and toothbrush holders

Note: Buizen Yachts Pty Ltd. reserves the right to amend the above specification from time to time as may be determined by changes to equipment specifications, availability or the redesign of fittings and fixtures.

Buizen Pilot House Yachts
Buizen Yachts Pty Ltd
57 Myoora Rd. Terrey Hills NSW 2084 Australia
Tel: 61 2 9450 2170 Fax: 61 2 9450 2472
Email: sails@buizenyachts.com.au
Web: www.buizenyachts.com.au

61 2 9450 2170
57 Myoora Road Terrey Hills NSW 2084 Australia
Copyright Buizen Yachts | Site Map | Website by RAM Marketing
